1.2°110H Stepping Motor Specifications(110H电机技术参数)
型号 Series Model

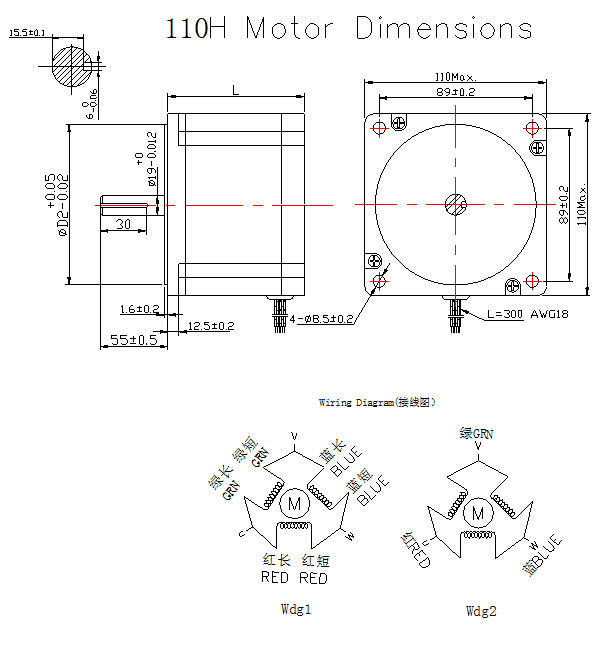

| 相数 No.of phase | 步距角 Step Angle (°) | 机身长 Motor Length (mm) | 电流 Rated Current (A) | 电压 Drive-Voltage (VAC) | 静力矩 Holding Torque (N. m Min) | 转动惯量 Rotor Inertia (Kg.cm²) | 接线方式 Wirings Diagram |
110H3501 |
3 | 1.2 | 112 | 4.2 | 220 | 12 |
6.5 |
Wdg2 |
110H3502 |
3 | 1.2 | 150 | 4.5 | 220 | 16 |
7.2 |
Wdg2 |
110H3503 |
3 | 1.2 | 162 | 4.8 | 220 | 20 |
8 |
Wdg2 |
110H3504 |
3 | 1.2 | 193 | 5.2 | 220 | 25 |
12.5 |
Wdg2 |
*以上仅为代表性产品！可配减速箱
