1.2°57H Stepping Motor Specifications(57BYGH电机技术参数)
型号 Series Model
| 步距角 Step Angle (°) | 机身长 Motor Length (L mm) | 相电流 Phase Current (A) | 电阻 Phase Resistance (Ω) | 电感 Phase Inductance (mH) | 静力矩 Holding Torque (kg.cm Min) | 转动惯量 Rotor Inertia (g.cm²) | 引线数 Lead Wire (No.) | 重量 Motor Weight (g) |
ST57H340 | 1.2 | 45 |
1.5 | 1.4 | 1.5 | 5 | 120 | 6 | 500 |
ST57H341 | 1.2 | 45 |
3 | 0.48 | 0.5 | 5 | 120 | 6 | 500 |
ST57H350 | 1.2 | 56 |
2 | 2.3 | 9 | 190 | 6 | 750 | |
ST57H351 | 1.2 | 56 |
3 | 0.65 | 0.8 | 9 | 190 | 6 | 750 |
ST57H370 | 1.2 | 76 |
2 | 2.9 | 4.4 | 17 | 480 | 6 | 1150 |
ST57H371 | 1.2 | 76 |
3 | 1.0 | 2.4 | 15 | 480 | 6 | 1150 |
*以上仅为常规产品，特殊产品可根据客户要求订制！

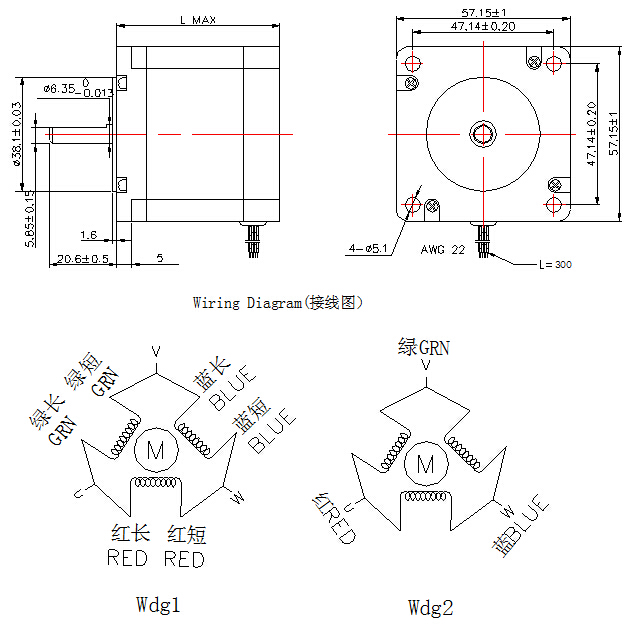

Dimensions(外形图): unit=mm
