35H/35HM电机技术参数
型号 Series Model | 步进角 Step Angle (°) | 机身长 Motor Length (L=mm) | 电流 Rated Current (A) | 电阻 Phase Resistance (Ω) | 电感 Phase Inductance (mH) | 静力矩 Holding Torque (kg.cm Min) | 转动惯量 Rotor Inertia (g.cm²) | 引线数 Lead Wire (No.) | 重量 Motor Weight (g) |
ST35H200 | 1.8 | 20 | 0.4 | 5.8 | 2.7 | 0.5 | 8 | 4 | 85 |
ST35H201 | 1.8 | 20 | 0.3 | 25 | 6．2 | 0.5 | 8 | 4 | 80 |
ST35H2501 | 1.8 | 25 | 0.25 | 18.5 | 14.6 | 0.8 | 11 | 4 | 100 |
ST35HM2502 | 0.9 | 25 | 0.55 | 5.5 | 3.4 | 0.8 | 11 | 4 | 110 |
ST35H301 | 1.8 | 34 | 0.3 | 25 | 25 | 1.8 | 13 | 4 | 180 |
ST35HM302 | 0.9 | 34 | 0.5 | 16 | 25 | 1.6 | 13 | 4 | 180 |
ST35H307 | 1.8 | 34 | 1.2 | 3 | 4 | 2.2 | 13 | 4 | 180 |
ST35H360 | 1.8 | 34 | 0.4 | 28.5 | 13 | 1.2 | 13 | 6 | 180 |
ST35H400 | 1.8 | 48 | 0.35 | 32.5 | 22 | 2.8 | 16 | 4 | 250 |
ST35H402 | 1.8 | 48 | 1.0 | 3.6 | 4.32 | 2.8 | 16 | 4 | 250 |
*以上仅为常规产品，特殊产品可按客户要求订制！

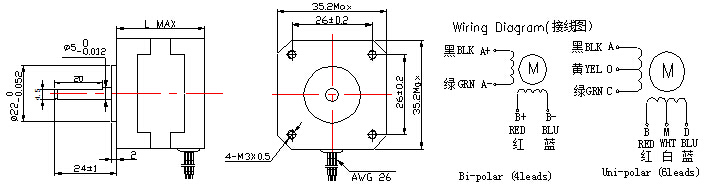

Dimensions(外形图): unit=mm
