Linear stepper motor 35H

introduction

20H,28H,35H,39H,42H Selection of linear motor lead screw

丝杆直径

Screw Dia.

(Inch)

丝杆直径Screw Dia.

  (mm)

导程

  lead

(inch)

导程

 lead

(mm)

步长Resolution

(mm)

螺距

Screw Pitch (mm)

适配电机

Stepper motor for screw

外形图号

Drawing no.

0.195

5

0.079

2

0.01

1

20,28,35,39,42

①~⑨

0.25

6.35

0.062

1.58

0.0079

1.58

35,39,42

④~⑨

0.25

6.35

0.124

3.16

0.0158

1.58

35,39,42

④~⑨

0.25

6.35

0.249

6.32

0.0316

1.58

35,39,42

④~⑨

0.275

7

0.048

1.219

0.006

1.219

   28,57

   ②、⑩

0.315

8

0.039

1

0.005

1

39,42

⑥⑦⑧⑨

0.315

8

0.078

2

0.01

2

39,42

  ⑥⑦⑧⑨

0.315

8

0.157

4

0.02

2

39,42

⑥⑦⑧⑨

0.315

8

0.315

8

0.04

2

39,42

⑥⑦⑧⑨

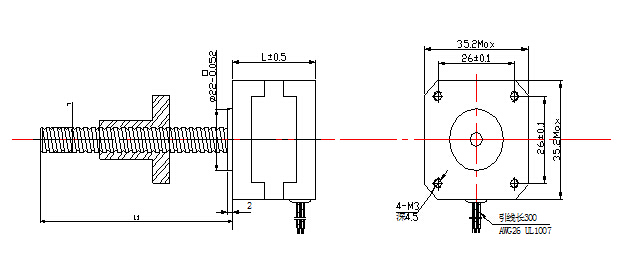

Dimensions(外形图): unit=mm

35H External drive linear stepper motor
